PAB-FAEMFC
PAB-FA Analytical Balance
EMFC 0.1 mg analytical balance, 110–310 g, glass chamber, RS-232, optional 2nd display.
Key features
- Five-piece fully transparent glass weighing chamber
- Dynamic temperature compensation and auto zero tracking
- Micro-sample weighing with return-to-zero technology

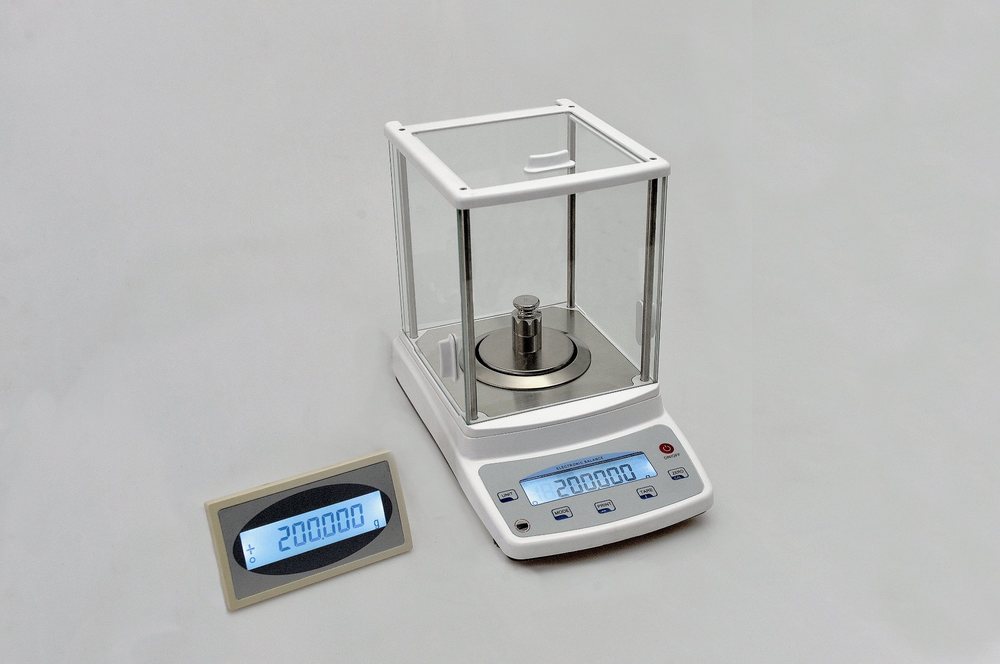

- RS-232 standard, optional second display
- Hanging hook for below-balance density determination
Photo gallery

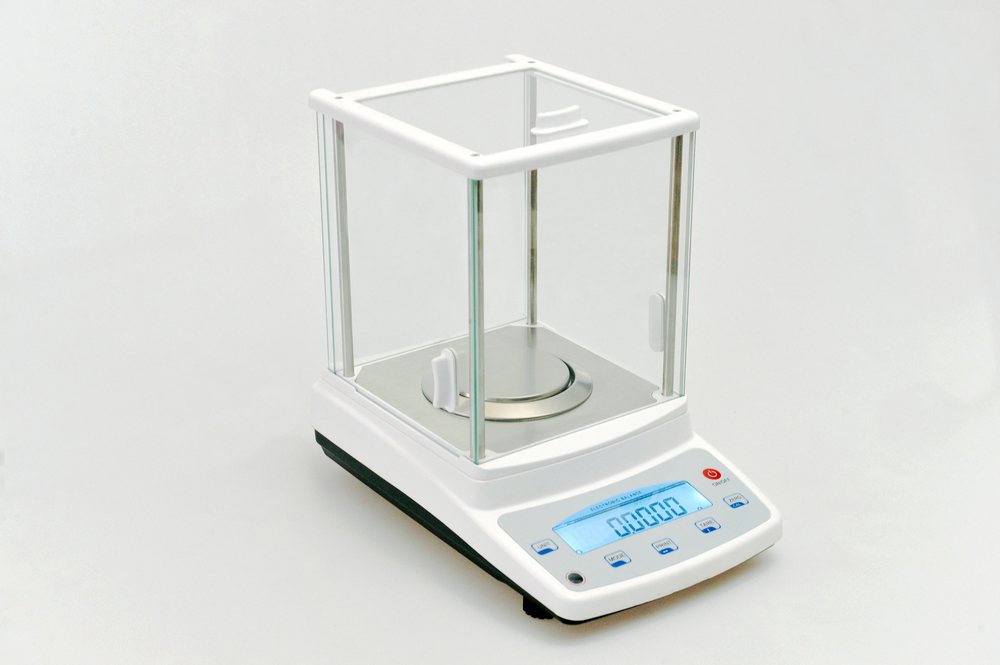

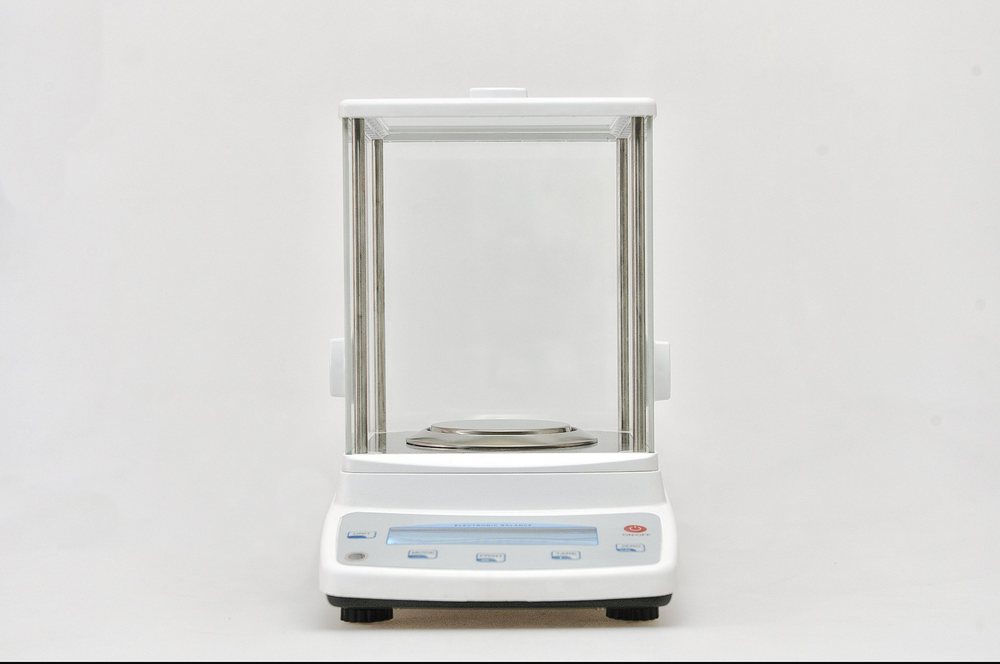

Front view, display and keypad, side profile and weighing pan. Full-resolution photos available on request.
Every capacity, one table
| Model | Weighing range (g) | Readability (mg) | Repeatability (mg) | Linearity (± mg) | Pan size | Power supply | Housing L×W×H (mm) | Chamber (mm) |
|---|---|---|---|---|---|---|---|---|
| PAB-FA110 | 110 | 0.1 | ± 0.2 | ± 0.2 | Ø 90 mm | 15 V / 500 mA | 325 × 205 × 310 | 180 × 175 × 200 |
| PAB-FA210 | 210 | 0.1 | ± 0.2 | ± 0.2 | Ø 90 mm | 15 V / 500 mA | 325 × 205 × 310 | 180 × 175 × 200 |
| PAB-FA310 | 310 | 0.1 | ± 0.3 | ± 0.3 | Ø 90 mm | 15 V / 500 mA | 325 × 205 × 310 | 180 × 175 × 200 |
Other capacities, pan sizes and housing colours are available on request.
Send Inquiry
Fill in as much as you can. Specification, sample type and destination country let us quote accurately the first time.
Need a different configuration?
Specifications listed here are standard configurations. Models, ranges, detector options, interfaces and branding can all be customised. Send us your measurement requirement and we will propose a configuration within one working day.
