MD
MD Solid Density Meter
Archimedes-principle density meter, 120–3000 g, direct density reading.
Key features
- Direct density reading — no manual calculation
- Integrated density determination set in the chamber
- Optional kits for floating samples and granules
- RS-232C standard, backlit LCD
Photo gallery

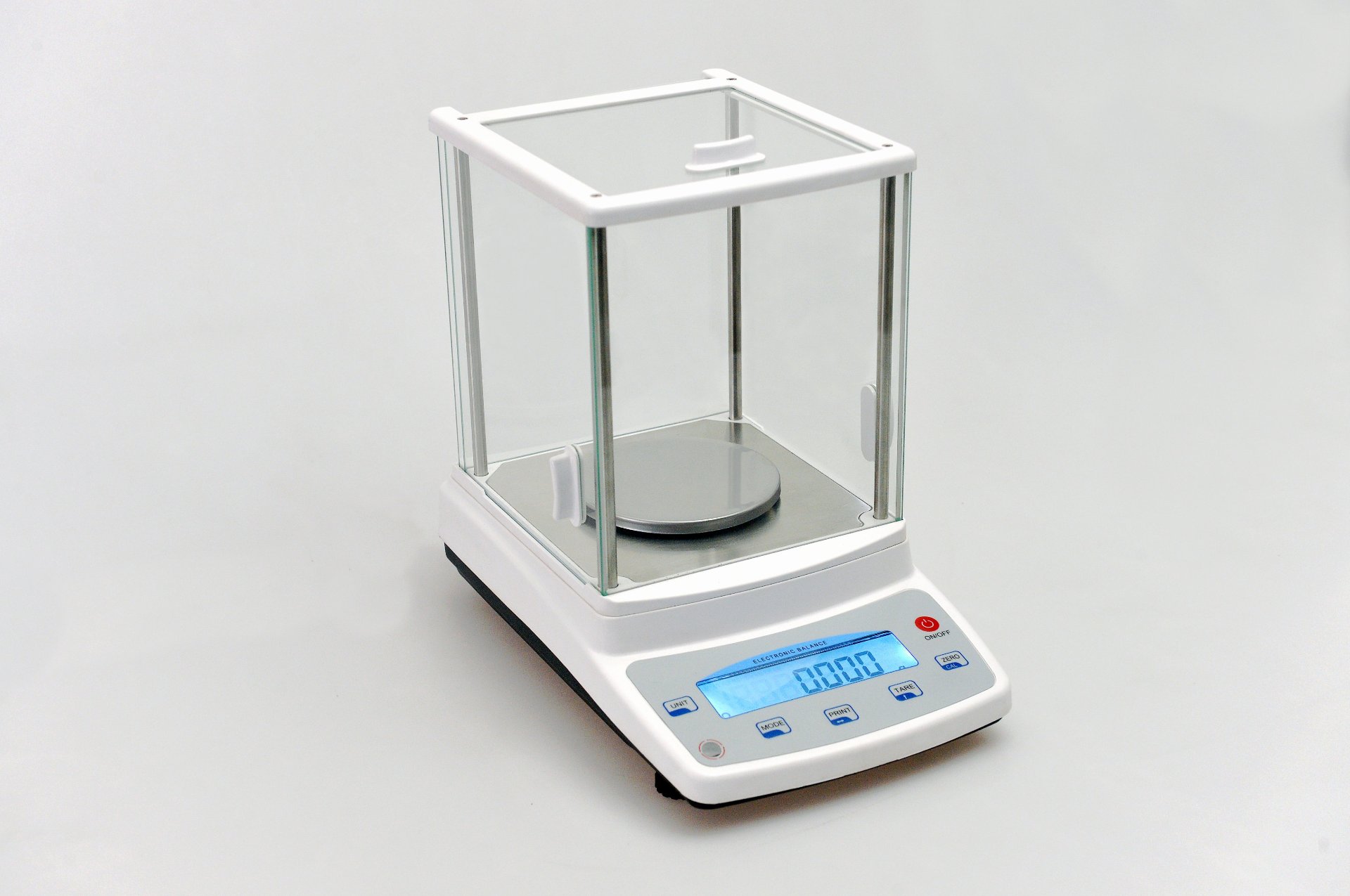

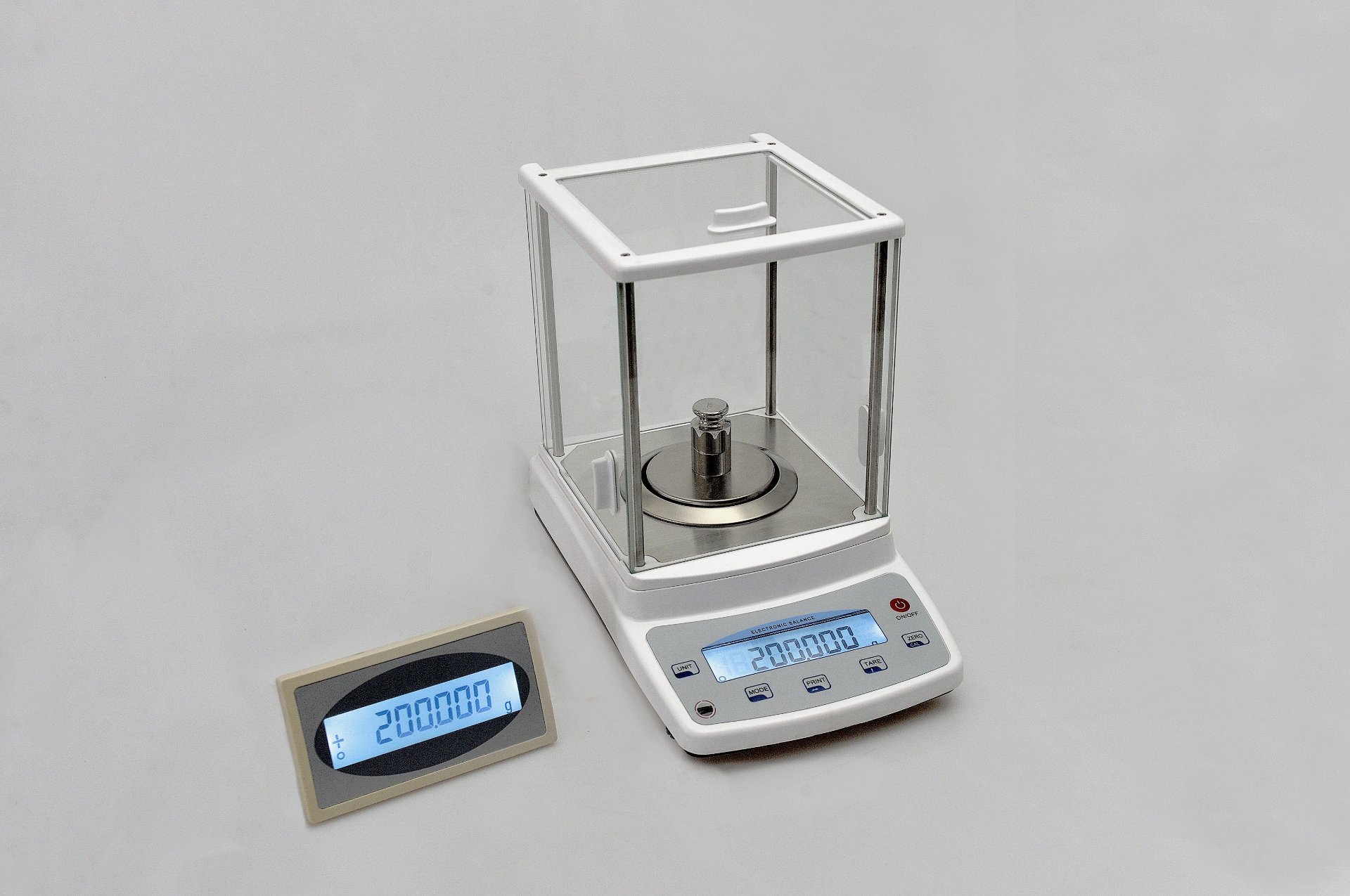

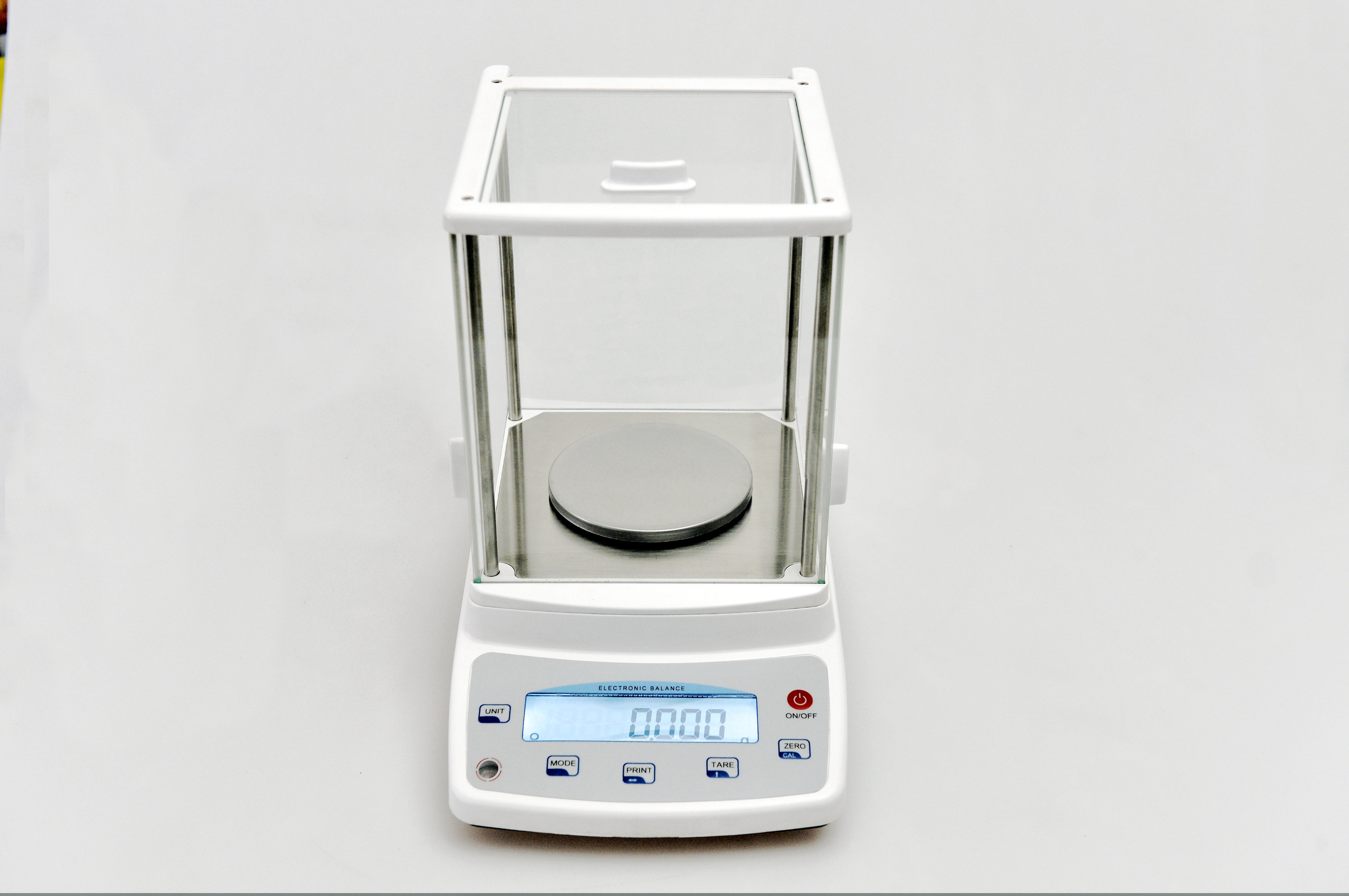

Front view, display and keypad, side profile and weighing pan. Full-resolution photos available on request.
Every capacity, one table
| Model | Max capacity (g) | Readability (g) | Density readability (g/cm³) | Repeatability (g) | Hanging pan size | Housing L×W×H (mm) | Power supply |
|---|---|---|---|---|---|---|---|
| MD-124 | 120 | 0.0001 | 0.0001 | ± 0.0003 | Ø 60 mm | 325 × 205 × 305 | 15 V / 500 mA |
| MD-200 | 200 | 0.001 | 0.001 | ± 0.002 | Ø 160 mm | 325 × 205 × 305 | 15 V / 500 mA |
| MD-300 | 300 | 0.001 | 0.001 | ± 0.002 | Ø 160 mm | 325 × 205 × 305 | 15 V / 500 mA |
| MD-3000 | 3000 | 0.01 | 0.01 | ± 0.02 | Ø 160 mm | 325 × 205 × 305 | 15 V / 500 mA |
Other capacities, pan sizes and housing colours are available on request.
Send Inquiry
Fill in as much as you can. Specification, sample type and destination country let us quote accurately the first time.
Need a different configuration?
Specifications listed here are standard configurations. Models, ranges, detector options, interfaces and branding can all be customised. Send us your measurement requirement and we will propose a configuration within one working day.
